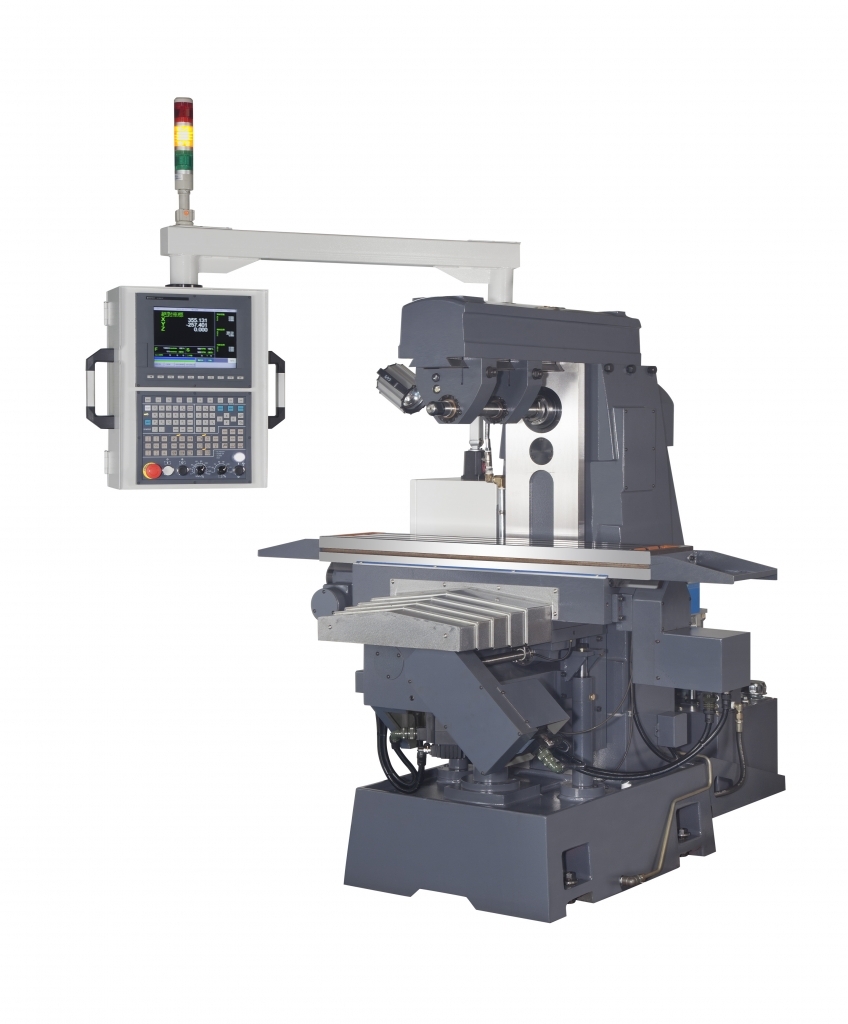

CNC Horizontal Milling Machine
Specification
Table | ||
Table Size | mm | 1050 × 240 |
Longitudinal Travel | mm | 700 |
Cross Travel | mm | 300 |
Vertical Travel | mm | 340 |
Longitudinal/Cross Feed | mm/min | 1500 |
Longitudinal/Cross Rapid Feed Rate | mm/min | 3000 |
Vertical Rapid Feed Rate | mm/min | 2000 |
| ||
Spindle | ||
Spindle Speed | rpm | 150-800(Speed Variator) |
Spindle Tapper | N.T 40 | |
Spindle Center to Table Surface | mm | 20-360 |
Spindle Center to Overarm Bottom | mm | 110 |
Motor | ||
Spindle Motor | 3HP | |
Longitudinal/Cross Motor | 1KW | |
Vertical Motro | 2KW | |
Coolant Pump | 1/8 P | |
Net Weight | kg | 1500 |
Cross Weight | kg | 1600 |
Packing Measurement (LxWxH) | mm | 2100 × 1800 × 2100 |
