產品描述

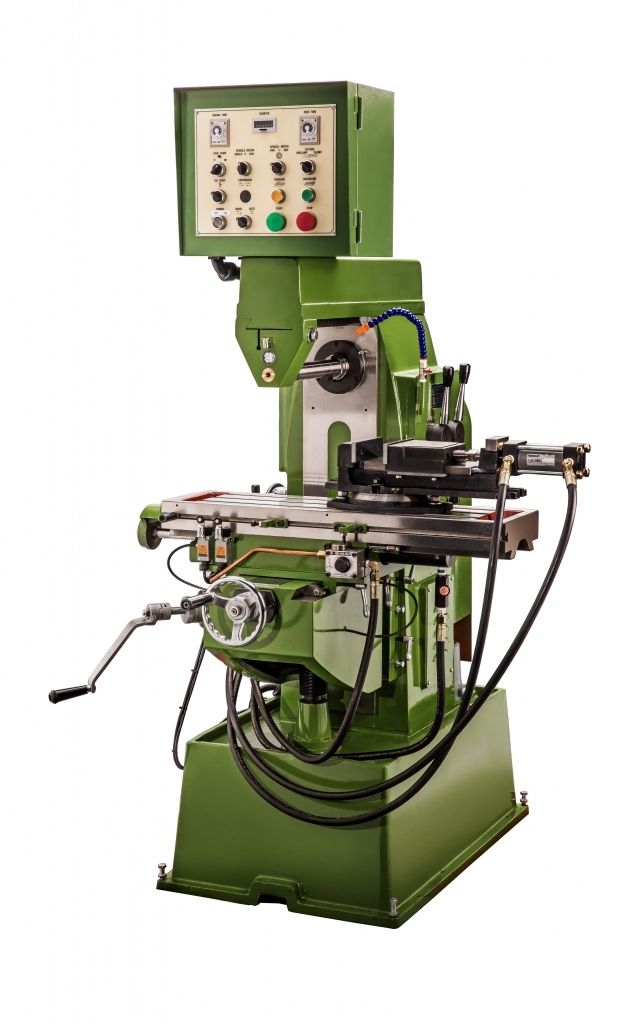

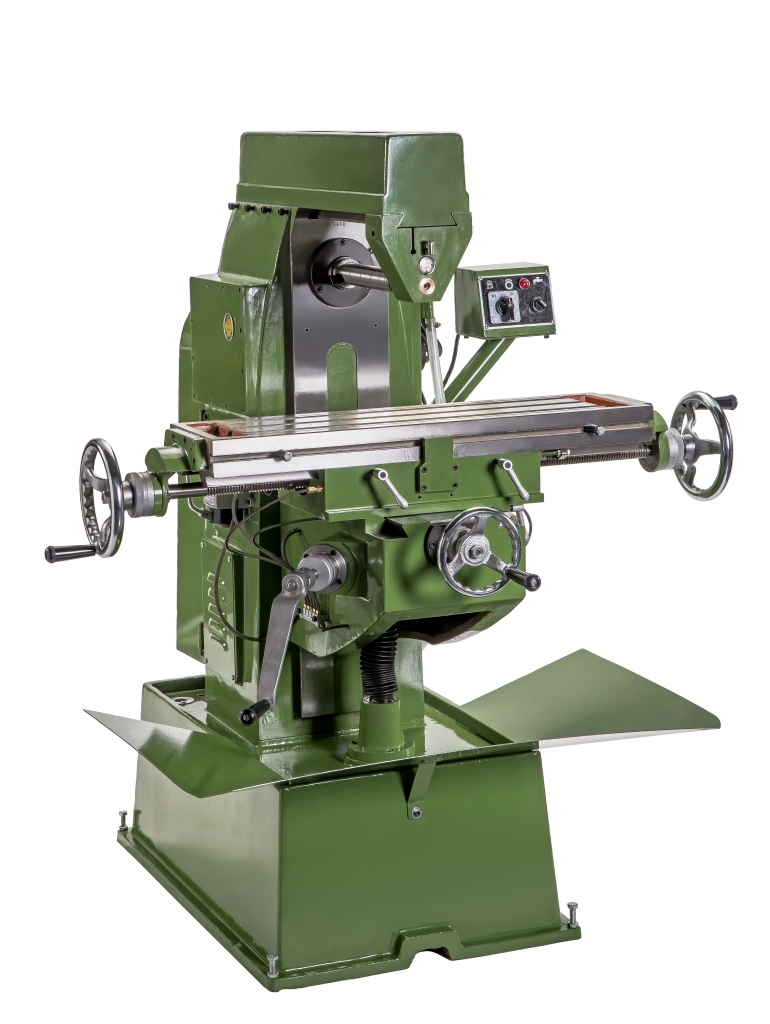

| JC-3/4U Specification Manual/Hydraulic | ||
| Table | ||
| Table Size | mm | 220 × 815 |
| Longitudinal Travel | mm | lead screw 420 / cylinder 450 |
| Cross Travel | mm | 220 |
| Vertical Travel | mm | 370 |
| Spindle | ||
| Spindle Tapper | N.T.30 × 1” | |
| Spindle Motor | 3 Phase 2HP | |
| Spindle Speed (6 Steps) |
rpm | 80 - 760 |
| Feeder Type | Manual(lead screw)/Hydraulic(cylinder) | |
| Packing (LxWxH) | mm | 1300 × 1200 × 1500 |
| Net Weight | kg | 700 |
